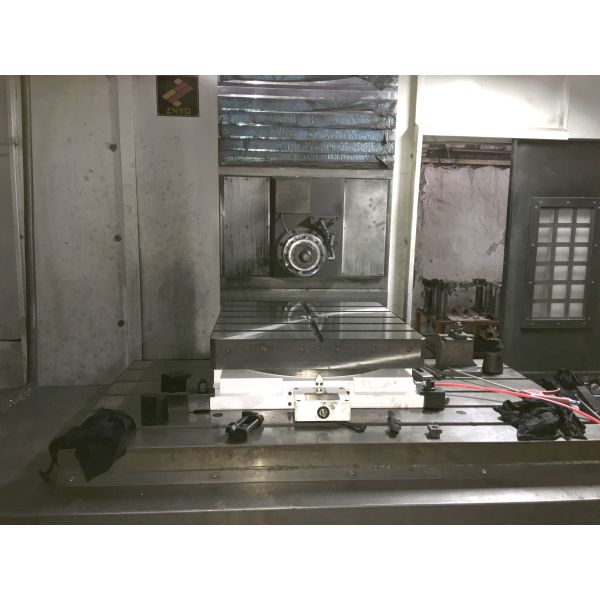

2 Piece Hirth Coupled Pneumatic Rotary Indexer Built for 500 6000 Kg CNC Machining

  • 1
  • 2

Flatness / Runout : 0.01–0.03 Mm Precision Range Across The Series

Drive Type : Manual Rotary Drive

Delivery Time : According To Customer Needs

Positioning System : 2-piece Hirth Coupling, Zero Accuracy Drift Over Time

Model Number : HCT Series

Packaging Details : Wooden Box

Certification : ISO9001,CE

Payment Terms : T/T

Application : High-precision Machining (boring, Milling, Grinding)

Material : Aluminum Alloy

Supply Ability : 1000set/month

Place Of Origin : Dongguan,China

Brand Name : JuZhuo

MOQ : 1set

Max. Horizontal Load : 500 Kg To 6,000 Kg (model-dependent)

T-Slot Size : 14H7 To 22H7

Indexing Accuracy : ±3 Seconds (360° Full Indexing), ±2 Seconds (72 Divisions)

Price : Negotiable

Contact Now

High Precision Pneumatic Driven Indexing Table
The Pneumatic Indexing Rotary Table is an advanced, highly reliable solution designed for precision machining applications such as boring, milling, and grinding. Constructed with a robust FC-35 cast iron body that undergoes stress-relief heat treatment, this air-powered indexing rotary table offers exceptional durability and long-term stability, ensuring consistent performance even under heavy operational demands.
Key Features
  • Air powered indexing rotary table for precise and efficient positioning
  • Flatness/runout precision range of 0.01-0.03 mm across the series
  • Constructed from high-quality materials for durability and performance
  • Max. Horizontal Load capacity ranging from 500 Kg to 6,000 Kg
  • T-Slot Size options from 14H7 to 22H7 for various tooling requirements
  • Weight varies from 90 Kg to 2,000 Kg based on model
  • Designed for reliable and repeatable rotary indexing applications
Technical Specifications
Product Name Pneumatic Indexing Rotary Table
Table Size 300×300 mm to 1200×1200 mm (Square Series)
Key Benefits Heavy-cut Capable, Durable, Low-maintenance, Long-term Stability
Material Aluminum Alloy
Application High-precision Machining (Boring, Milling, Grinding)
Max. Vertical Load 1,200 Kg to 7,000 Kg (Model-dependent)
Indexing Accuracy ±3 Seconds (360° Full Indexing), ±2 Seconds (72 Divisions)
Positioning System 2-piece Hirth Coupling, Zero Accuracy Drift Over Time
Clamping Pneumatic Lock/Unlock (Air Supply: 5-8 Kg/cm²)
Center Hole Ø25H7 to Ø80H7
2 Piece Hirth Coupled Pneumatic Rotary Indexer Built for 500 6000 Kg CNC Machining
Applications
The JuZhuo Pneumatic Indexing Rotary Table, model HCT Series, is ideal for automation lines, assembly stations, and inspection equipment where precise and repeatable indexing is crucial. Its compact design allows seamless integration into existing production lines, making it suitable for manufacturing scenarios involving machining, welding, and packaging processes across electronics, automotive, and precision engineering industries.
Customization Options
JuZhuo offers customized Pneumatic Indexing Rotary Table solutions under the HCT Series with center hole options ranging from Ø25H7 to Ø80H7 and total heights between 130 mm to 340 mm. Each unit is certified with ISO9001 and CE, packaged securely in wooden boxes, with flexible delivery times and negotiable pricing.
Support & Services
Our technical support includes comprehensive product manuals for installation, maintenance, and troubleshooting. We offer repair services, replacement parts, and calibration assistance to ensure optimal performance and minimize downtime.
Packing & Shipping
Each unit is securely packaged in custom-fitted wooden crates with shock-absorbing materials. We offer multiple shipping options with tracking and handle all necessary export documentation for international orders.
Frequently Asked Questions
Q: What brand and model is the Pneumatic Indexing Rotary Table?
A: The Pneumatic Indexing Rotary Table is from the brand JuZhuo, model HCT Series.
Q: Where is it manufactured?
A: It is manufactured in Dongguan, China.
Q: What certifications does it have?
A: The product is certified with ISO9001 and CE.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 set.
Q: What are the payment terms and delivery time?
A: Payment terms are typically T/T, and delivery time is arranged according to customer needs.
